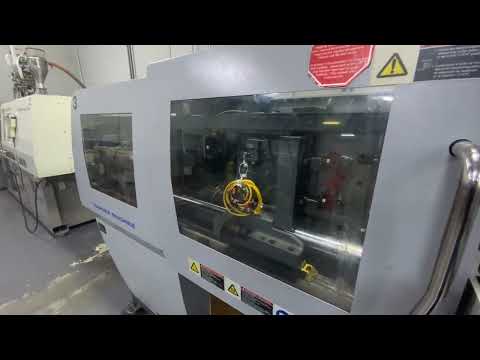

2012 EC85SXV50-U22-2B Toshiba Machine
HORIZONTAL INJECTION MOULDING MACHINES
| Type | All Electric |
| Clamping Force Tonnage | 82.7 T |
| Barrel Code | 2B |
| Shot Volume (PS) | 4.2 oz |
| Screw Diameter | 1.42" |
| Maximum Injection Pressure | 25200 psi |
| Maximum Holding Pressure | 25200 psi |
| Screw Speed STD | 12.4 rpm |
| Plasticizing Capacity (PS) STD | 0.8 oz |
| Nozzle Touch Force | 1.1 T |
| Tie Bar Distance H | 16.1" |
| Tie Bar Distance V | 14.2" |
| Platen Dimension H | 22.8" |
| Platen Dimension V | 20.9" |
| Clamp Stroke | 11.8" |
| Maximum Daylight | 30.3" |
| Mold Height Min | 5.9" |
| Mold Height Max | 18.5" |
| Ejector Force | 2.2 T |
| Ejector Stroke | 2.8" |
| Injection Orientation | Horz |
| Hours | 57,000 hr. |
| Machine under power | Under power running with mould |
| Control | CNC |
| Dimensions | 13.5 x 3.9 x 5.2 ft |
| Weight | 7200 |
Tungsten Carbide Screws and Barrels and transformers for 460 volts.
