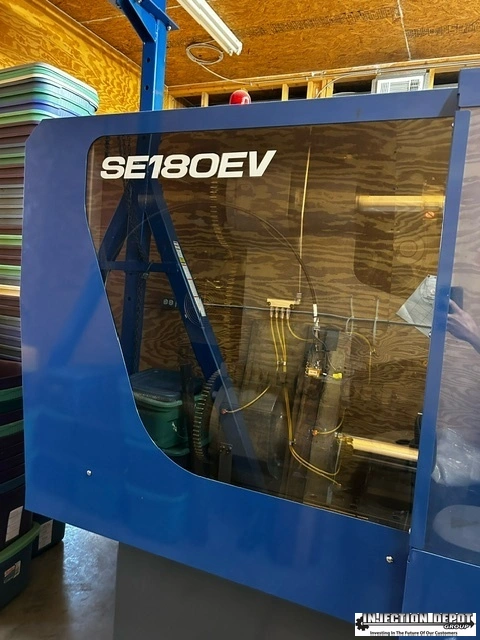

2012 Sumitomo SE180EV-C560
HORIZONTAL INJECTION MOULDING MACHINES
| Clamping Force Tonnage | 202 T |
| Shot Volume (PS) | 10.7 oz |
| Shot Volume (PE) | 23 oz |
| Tie Bar Distance H | 24" |
| Tie Bar Distance V | 24" |
| Platen Dimension H | 34.3" |
| Platen Dimension V | 34.3" |
| Clamp Stroke | 29.9" |
| Maximum Daylight | 41.3" |
| Ejector Force | 29.9 T |
| Ejector Stroke | 4.7" |
| Power supply Volts | 230 |
| Injection Orientation | Horz |
| Machine under power | Under Power no Mould in Machine |
| Control | CNC (TACT) |
Mag Platens Technomagnetic
Robot Interface
Yushin Robot RC11-250DS-17
Air Blow
