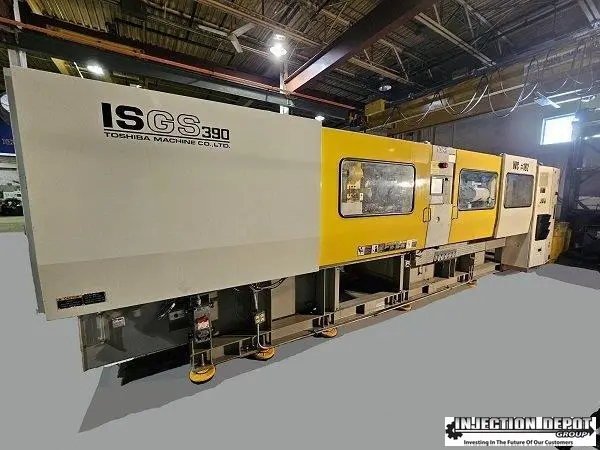

2007 Toshiba Machine ISGS390WV21-27AT
HORIZONTAL INJECTION MOULDING MACHINES
| Type | Hydraulic |
| Clamping Force Tonnage | 360 T |
| Shot Volume (PS) | 27 oz |
| Tie Bar Distance H | 38.1" |
| Tie Bar Distance V | 38.1" |
| Platen Dimension H | 43.3" |
| Platen Dimension V | 43.3" |
| Clamp Stroke | 37.3" |
| Maximum Daylight | 37.3" |
| Power supply Volts | 460 |
| Injection Orientation | Horz |
| Hours | 2,945 hr. |
| Control | CNC (Injectvisor V21) |
- Core Pull
- 460/3/60
- Hopper
- Conair AL-5 Loader
